Liquid Packing Machine
|
Descrpition
|
Capacity
|
Packing film width
|
Bag-making length
|
Bag-making width
|
Filling Range
|
Overall Dimension
|
Machine Weight
|
Material of plastic film roll
|
Add color ribbon coder
|
|
HDR-W1000
|
50-550ml
|
100-320mm
|
150mm
|
40-150mm
|
1500-2100 bags/h
|
880×760×1800mm
|
310kg
|
Single layer PE
|
Yes
|
|
HDR-W2000
|
200~1000ml
|
100-320mm
|
50-250mm
|
40-175mm
|
1100-1300bags/h
|
1050×850×2050mm
|
380Kg
|
Single layer PE
|
Yes
|

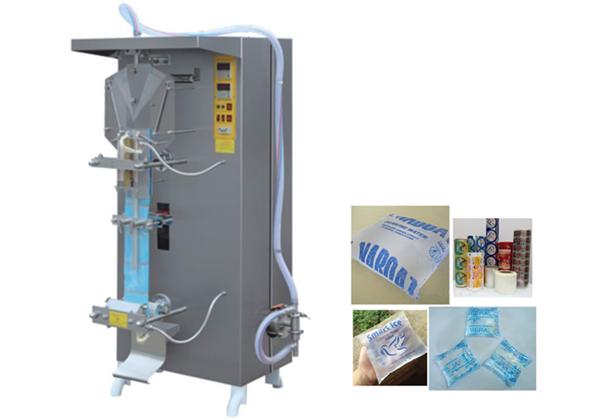

Automatic Liquid Packing Machine
This machine is high precision and most advanced liquid packing machine in China, which is three sides sealing, intermittent and vertical. It can be completed making, filling, sealing, printing, cutting, counting automatically, microcomputer controlled, tracking photo-electricity, orientation exactitude. It is widely used to pack all kind of liquid without gas, especially sauce, yellow wine,water.
1.Back seal-packing method,valve piston pump filling meter Film disinfection,liquid disinfection.
2.The finished packed products are elegant and reliable,hygiene and security.
3.It can automatucally finish makiong-bag,metering,filling,sealing,cutting,counting
and printing batch number.
4.The body and the parts touching the material are made of stainless steel.
5.It can choose: glasses safe cover, color ribbon coder and UV sterilizer.
|
